SPECIFICATIONS

Brand Name: OBO HANDS

Choice: yes

Connectivity: WiFi

Doorknob Funcition: Biometric,Key & Keypad

Fit Door Thickness: 35~55mm

Handle Direction: Direction Reversible

Material: Aluminium Alloy

Model Number: OBOL-7

Origin: Mainland China

Power Supply: DRY BATTERY

Protection Level: No Waterproof

Smart home platform: Tuya

Suitable Door Type: Steel Door,Wooden Door

Type: Tuya Biometric Fingerprint Smart Door Lock

Type2: Fingerprint Smart Door Lock

Ways To Unlock: App,Mechanical Keys,Card,WiFi,Password,FINGERPRINT

semi_Choice: yes

Product Specifications

• Material: Aluminum alloy


• Multiple unlocking methods: Supports Wifi Tuya APP, Fingerprint, Password, RFID Cards, Mechanical keys.


• Fingerprint capacity: 100

• Card capacity: 100

• Password capacity: 100

• Working frequency: 13.56MHz (IC)


• Fingerprint reader: semiconductor sensor

• Handle direction: Direction Reversible

• Read time: ≤ 0.3S

• Working power: 4x AAA battery ( Not included ) / USB emergency charging

• Operating temperature: -20 to 60°C

• Suit for the door thickness: about 35-55mm

• Emergency power supply: USB charging port (Type C)

• Application: Wooden Door / Metal Door

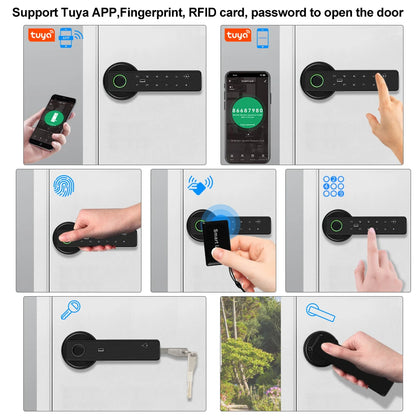

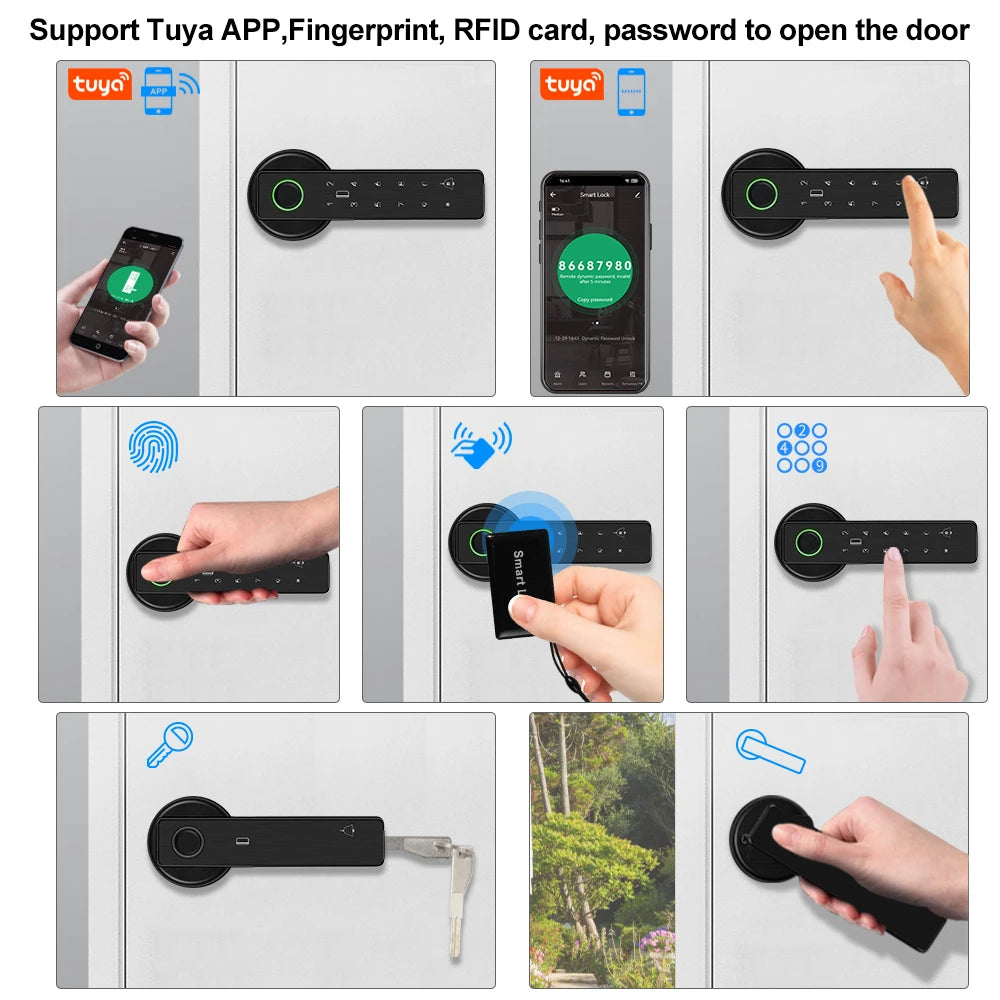

Support Tuya APP, Fingerprint, RFID Card, Password, Mechanical keys to unlock the door
Support 100 fingerprint, password and RFID cards user capacity.

Support Fingerprints unlocking, fast identify Speed

Support virtual password unlock
The lock can be unlocked by entering the correct password in the middle of the garbled code

Can set the door to Normally Open mode
Can set the door keep opened state, when frequent entry and exit

Easy to replace your old lock

The handle can be installed left or right direction
(can be adjusted freely)

Powered by 4 * AAA Batteries; Long Battery Life

Support Mechanical keys to Unlock. Don't worry about if there is no power
( Noted: 4 * AAA Batteries are not included in the package)

When there is no power, you can unlock it by Type-C emergency charging outside the door

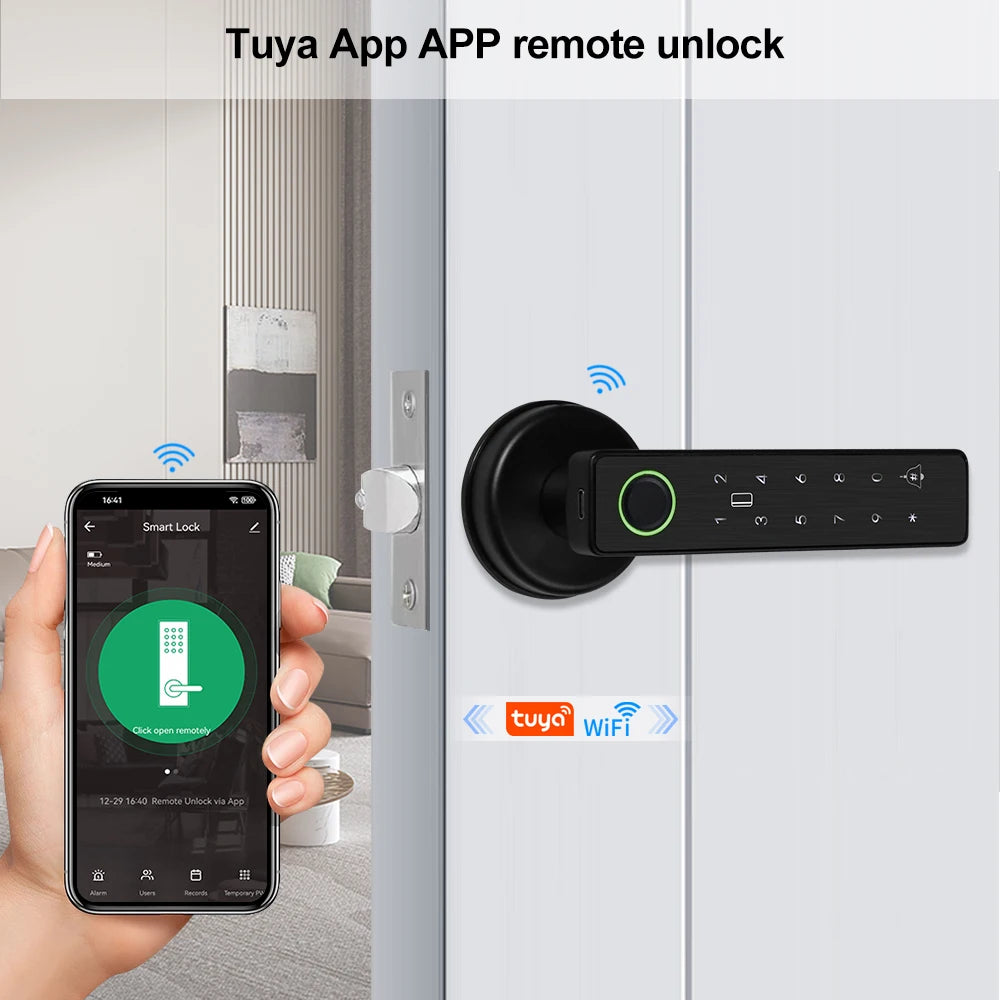

Support Tuya APP remote Unlock

Press “#” key on the lock first, then the lock will send unlock request to your Tuya APP

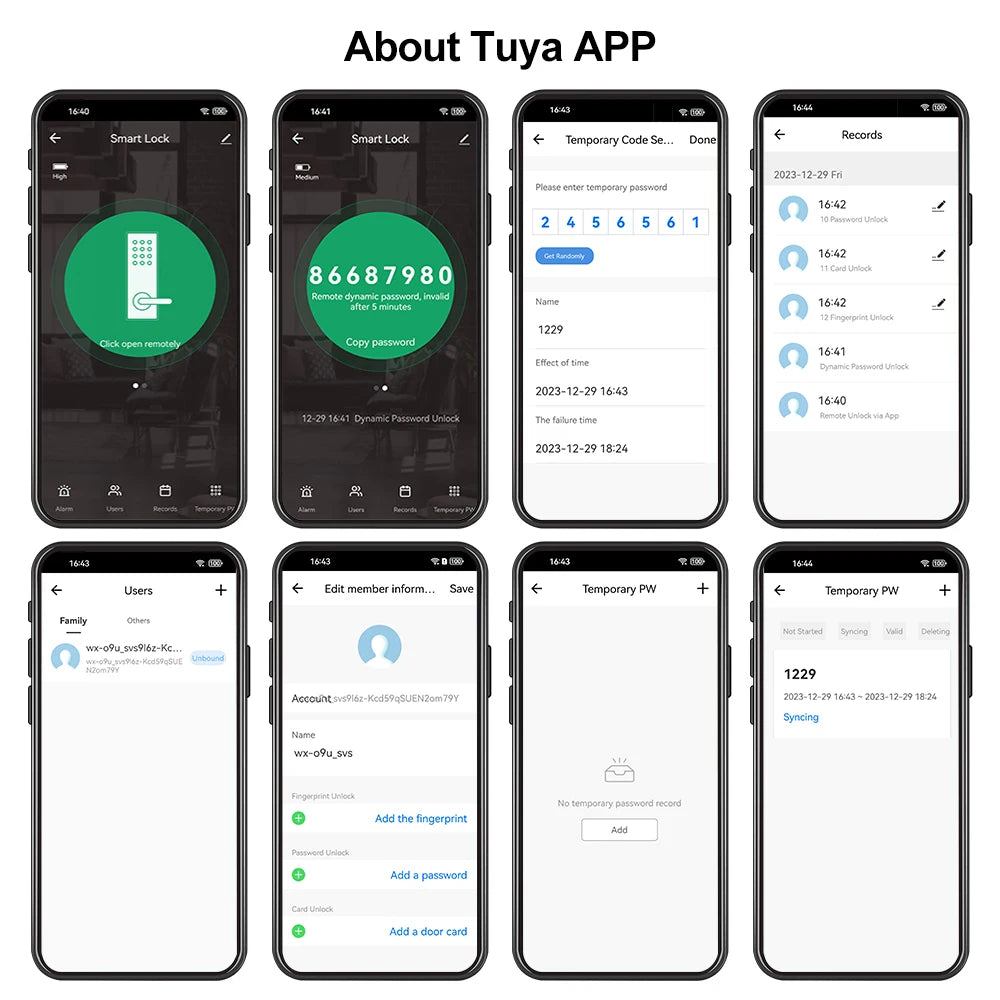

About Tuya APP

• Can unlock the door with Tuya APP unlocking button, or Tuya password at any where, it's very convenient.
• A periodic password can be set, and the password is valid for a certain period of time.
• Can view unlock records. Click Records to view logs.

Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter * # on the fingerprint lock. Follow the voice prompt: "Please enter administrator information", Enter initial password "123456” to enter settings, press "1" Administrator settings, press "3" Networking settings, press "2" Smart connection, then wait for 5 seconds for the indicator light to flash and start pairing pair with the mobile phone via WiFi.
3) Open Tuya APP to add new equipment.
4) Select "Camera & Lock", click "Lock(Wi-Fi)".
5) Connect your phone to WiFi and enter your password.
6) Confirm that the device indicator flashes and click OK.
7) Select "EZ Mode", Connect mobile WiFi to device hotspot.
8) Click "Next step"
9) Connecting, added successfully, click "Done"
10) Press "#", then the lock will send an unlock request to the APP.

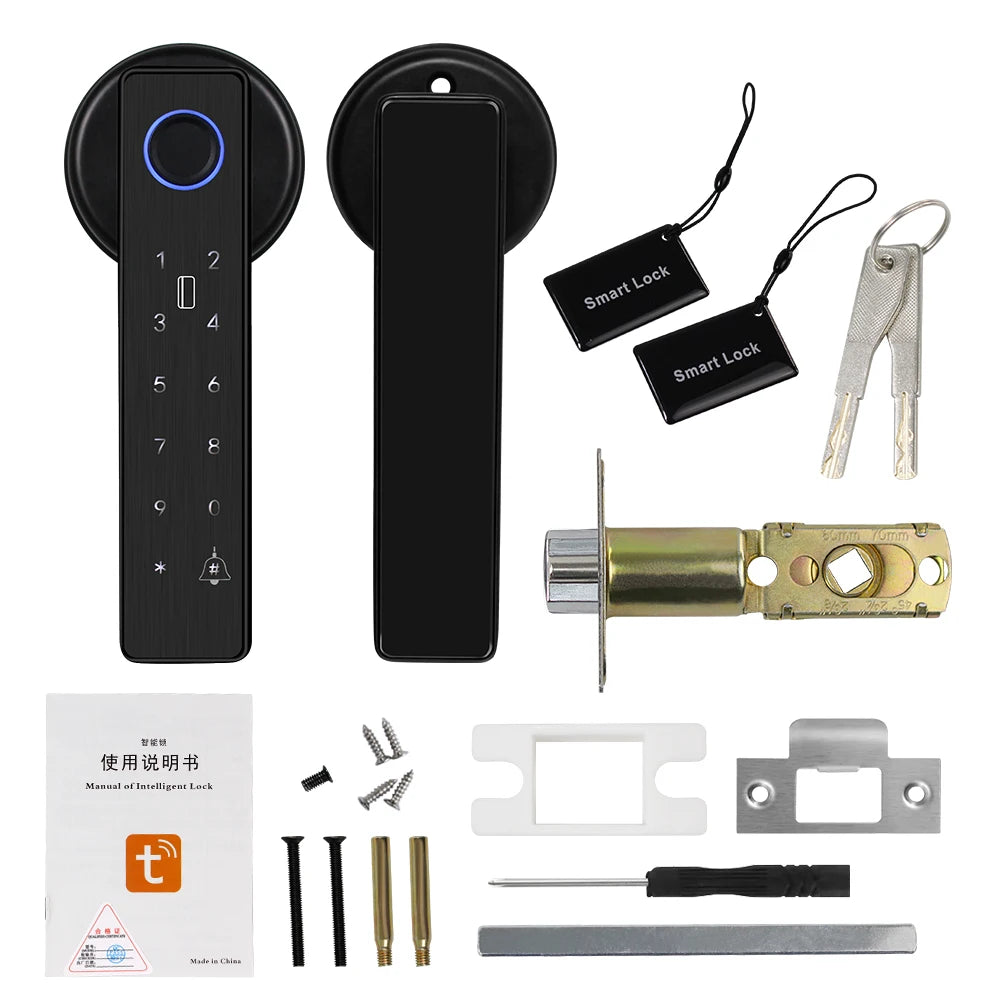

Packing List:
